- Stock: In Stock
- Model: JD-2600A
- Weight: 11.00kg
- SKU: JD-2600A
FEATURES
• Colorful Touch Screen
• With Printer And Pd, Built-in UV Part
• Automatic Recognition of Single And Progressive Lens

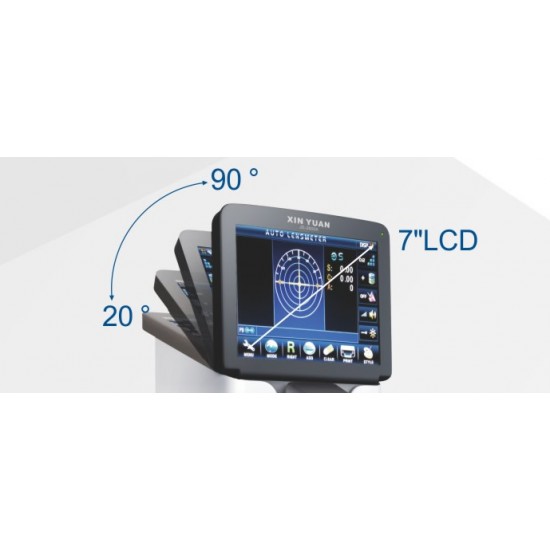

• The display unit utilizes a full-graphic LCD, displaying measured values of right-eye and left-eye lenses at one time and graphically showing the alignment condition in the shape of a target.
• Bigger screen than D-903 results in differences on marking lever designs and operation interfaces.
SPECIFICATIONS
|
Measure Scope |
|
|
Sphere |
0~±25D (0.01/0.12/0.25D steps) |
|
Cylinder |
0~±9.99D (0.01/0.12/0.25D steps) |
|
Axis |
0°~180° (1°step) |
|
Addtion |
0~±9.99D (0.01/0.12/0.25D steps) |
|
Prism |
0 ~ 15 (0.01/0.12/0.25D steps ) |
|
Measurement Mode |
|
|
Measurement mode |
Lens auto recognition |
|
|
Contact lens |
|
Pupil Distance |
45~90mm, 0.25mm steps |
|
Cylinder |
+1, +/-,- |
|
Prism |
X-Y, P-B |
|
Measuring speed |
0.1second |
|
Lens diameter |
Φ20--108mm |
|
Contact lens |
Soft/hard |
|
Display |
7"LCD/TPT |
|
|
Thermal print |
|
Package |
410(H)*350(W)*540(D)mm |
|
Power supply |
100~120V/200~220V, 50/60HZ |
|
Weight |
9.5KG |
