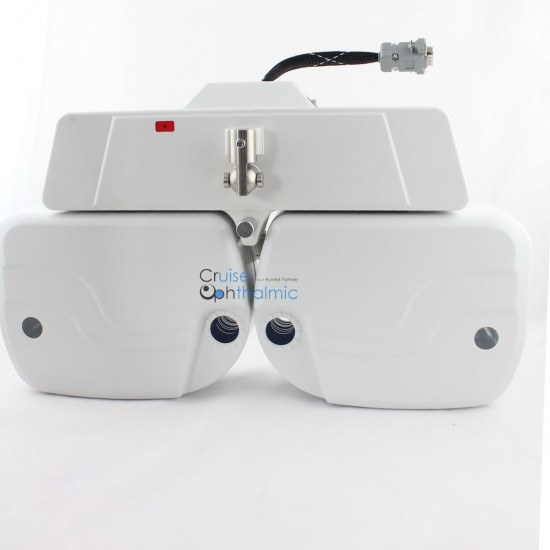

Digital Phoropter AV-1

Specification of Auto view tester auto phoropter:

A. Measuring Range:

1. SPH:  0.00D ~ -19.00D(-0.25D),+0.25D ~ +16.50D(+0.25D)

2. CYL:  0.00D ~ -8.75D(-0.25D

3. AXIS:  0°~ 180°(1°5°)

4. P.D:  48mm ~ 80mm

B. Auxiliary Lenses:

1. Occluder

2. P.D check

3. Pinhole Plate(1mm)

4. Polarizing: right eye 135°,left eye 45°

5. Red/Green Filters(right eye: red, left eye: green)

6. Maddox Rod: Right eye red horizontal/vertical, Left eye white vertical/horizontal

7. Dissolution prism: Right eye 6 B/U, Left eye 10  B/I

8. Fixed Cross Cylinder±0.50D

9. Retinoscope+1.50D

C. Auto Cross Cylinder Lens:  ±0.25D

D. Rotary Prism:  0~20(0.5)

E. Control System: Touch Panel Control

F. Monitor:  LCD(10"2)

G. Dimension And Weight:

1. Power Source:  DC12V

2. NET: Keyboard: 250(W)×230(D) ×210(H)mm, Main body: 110(W)×480(D) ×290(H)mm

3. Carton: Main body: 250(W)×530(D) ×450(H)mm, Keyboard: 310(W)×310(D) ×280(H)mm

4. Main body N.W: 8.2KG, G.W:11.7KG

5. Keyboard N.W: 2KG, G.W: 3.0KG
