Features

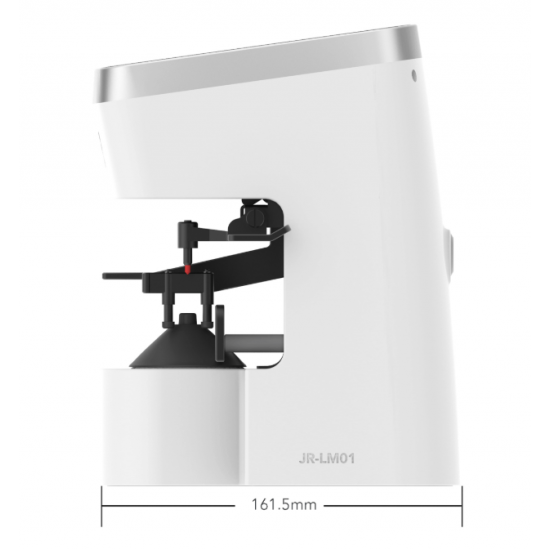

• Smallest Auto Lensmeter 100x150x200mm
• Hartman testing method, CPU high-speed precise computing
• Automatic identifying the lens type, Automatic measurement, Automatic reading and memorying the data
• 7 inch high resolving power LED screen Flip Monitor
• Printer can be adapted 1500mA to interface

   Technical Parameters

• Measuring range：
  1. Sphere：0 to ±25D（0.01D/0.06D/0.12D/0.25D steps)
  2. Cylinder: 0 to ±10D（0.01D/0.06D/0.12D/0.25D steps)
  3. Axis: 0°to 180°（1°step)
  4. ADD: 0 to 10D（0.01D/0.06D/0.12D/0.25D steps)
  5. Prism: 0 to 15△(0.01△)
• Cylinder mode: +, +/-, -
• Prism mode:
  • X-Y: cartesian coordinates H:I,O; V:U,D.
  • P-B: polar coordinates
  • mm: mm expression
• Reading resolving power： 0.01D,0.06D,0.12D,0.25D
• PD measure: 0~100mm
• Measure single vision lens,bifocal lens,trifocal lens and progressive lens,etc
• Contact lens measure
• Contact lens: 0 to ±25D, BC 6.00 to 9.00
• Display: 7" TFT LCD
• Menu: readable diagram, easy operation
• Lens diameter: 20mm～100mm
• Power source: AC100(±10%)～240(±10%)V, 50/60HZ, 40VA
• Power consumption: 40W
• N.Weight: 2000g
